2 Copper Wire OPLC 4 Core Outdoor Optical Cable YOFC Single Mode Optical Power Composite Cable

  • 1
  • 2
  • 3

Brand Name : JQ/OEM/Customize

Model Number : GDTS/OPLC

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30km Per day

Delivery Time : 3-5dyas

Packaging Details : 1/2/3/4/5 km in one wooden drum

Jacket material : PE, MDPE, LSZH, HDPE

Fiber count : 2-144Core

Fiber type : YOFC or as request

Color : Black or customized

Type : Hybrid Fiber Optic Cable

Structure : Stranded Loose tube

Installation : aerial/tube/duct

Application : Telecommunication

Contact Now

Outdoor 2 Copper wire OPLC 4 Core Composite Hybrid Optical Fiber Cable

Composite Fiber Optic Cable Product Features

  • Composite design integrating optical fiber and metal conductors for multi signal transmission

  • Loose tube structure with 250μm fiber and water resistant filling compound

  • PSP longitudinal wrapping with water blocking material for superior moisture protection

  • Steel wire and corrugated steel tape armoring for strong crush and impact resistance

  • Low attenuation and low dispersion for stable long distance performance

  • Compact lightweight and bend resistant structure for easy installation

  • PE outer sheath for outdoor durability and weather resistance

Application Scenarios

  • Outdoor duct overhead and direct buried installation

  • Distribution box to building pipeline connection

  • Optical communication equipment room cabling

  • Patch cord tail fiber and jumper applications

  • Campus residential and commercial building network projects

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical Parameters

Range of Temperature -20c~ +60c
Riser Type OFNR/OFN FT4
Plenum Type OFNR/OFN FT6
Jacket LSZH or PE
Code name cable
cores		 Diameter
(mm)		 Copper
Wire
(mm)		 Linear
mass
(kgk
m)		 Tensile Crush Bending
radius
Short
Term
(N)		 Long
Term
(N)		 Short
lerm
N)		 Long
Term
(N)		 short
Term
N)		 Long
Term
(N)
OPLC-2*0.5 6~24 10 2*0.5 125 1500 600 1000 300 20D 10D
OPLC-4*0.5 6-~24 10 4*0.5 130 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10 2*0.75 128 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10 4*0.75 135 1500 600 1000 300 20D 10D
oPLC-2*1.0 6~24 10 2*1.0 130 1500 600 1000 300 20D 10D
OPLC-4*1.0 6-~24 12 4*1.0 150 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12 2*1.5 140 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12 4*1.5 160 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~-24 12 2*2.5 150 1500 600 1000 300 20D 10D
OPLC-4*2.5 6-~24 14.5 4*2.5 180 1500 600 1000 300 20D 10D

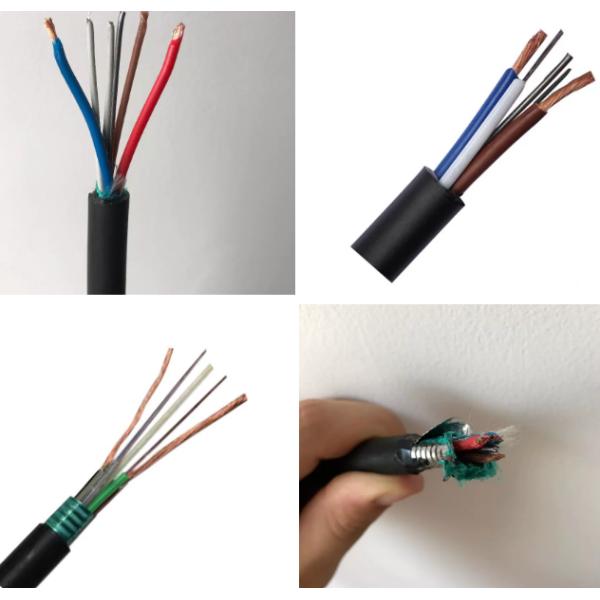

Product Image

2 Copper Wire OPLC 4 Core Outdoor Optical Cable YOFC Single Mode Optical Power Composite Cable

2 Copper Wire OPLC 4 Core Outdoor Optical Cable YOFC Single Mode Optical Power Composite Cable

2 Copper Wire OPLC 4 Core Outdoor Optical Cable YOFC Single Mode Optical Power Composite Cable

2 Copper Wire OPLC 4 Core Outdoor Optical Cable YOFC Single Mode Optical Power Composite Cable

Packing

1/2/3/4/km in one wooden drum,deliver days:5-8work days

2 Copper Wire OPLC 4 Core Outdoor Optical Cable YOFC Single Mode Optical Power Composite Cable

FAQ

1. Are you a trading company or manufacturer?
We are a direct manufacturer with 10 years experience in fiber optic cable, FTTH drop cable and patch cord production. Our factory is located in Guangzhou.

2. How do you guarantee quality?
All cables are fully tested before shipment. Free samples are available after price confirmation.

3. Do you support small orders?
Yes, small trial orders are welcome and supported.

4. What is the delivery time?
Normally 3 to 7 working days depending on order quantity. We arrange shipment quickly after payment.

5. Do you offer OEM service?
Yes, OEM service is available. We can customize products and print your logo as required.
